8.6 Total Cu. Ft. Double Wall Oven with Air Fry When Connected

Model: WOED5027LZ

Model: WOED5027LZ

8.6 Total Cu. Ft. Double Wall Oven with Air Fry When Connected

Name: 8.6 Total Cu. Ft. Double Wall Oven with Air Fry When Connected
Brand: Whirlpool
SKU: WOED5027LZ
Price: 2698.99 USD
Availability: OutOfStock
Rating: 3.71 (14 reviews)

WOED5027LZ

Model: WOED5027LZ

Hurry! Limited Time Offer Ends Soon

Compare

DOES IT FIT IN YOUR SPACE?

Use your camera to view in your room.

Compare

Key Features

•

Smart Wall Oven

•

6-in-1 Wall Oven with Fan Convection

•

8.6 Cu. Ft. Total Capacity

•

Air Fry Mode When Connected

•

Automatic Feature Updates When Connected

Color

Fingerprint Resistant Stainless Steel

Hurry! Limited Time Offer Ends Soon

Please enter a valid email You have already submitted your email.

in.stock.toast.message

to check availability in your area.

Estimating In-Home Delivery for ...

Earliest Estimated In-Home Delivery :

Protection Plans (Optional)

Flexible Appliance Protection Plans for Your Needs Learn More

Limited Standard Warranty included

Accessories

Frequently bought additional items

Warming Drawer Heat Deflector, Titan Steel

27" Built-In Oven Bottom Vent Shield Kit, Neptune Stainless Steel

Overview

Product Description

8.6 Total Cu. Ft. Double Wall Oven with Air Fry When Connected

Take on every meal with a smart double wall oven with air fry built for multitasking. Get crispy results in this double wall oven with Air Fry Mode (available via Automatic Feature Updates* when appliance is connected), while Fan Convection Cooking and Frozen Bake™ Technology let you get meals to the table easily. Clean everyday spills with the Steam Clean Option.

Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

FIT System Limited Guarantee

The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*

*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.

Additional Features

Smart Wall Oven

When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.

6-in-1 Wall Oven with Fan Convection

Cook however you want with 6 cooking modes in one wall oven: Frozen Bake™ Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry connect your appliance to receive Automatic Feature Updates.

8.6 Cu. Ft. Total Capacity

Make large family meals by cooking your main course, side dishes and dessert in this 8.6 Cu. Ft. Total Capacity double wall oven.

Air Fry Mode When Connected

Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.*Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

Automatic Feature Updates When Connected

Select Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.

Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.

Dishwasher-Safe Air Fry Basket (Sold Separately)

For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.

Fan Convection Cooking

Cook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.

Steam Clean Option

Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

Adjustable Self-Clean Cycle

Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

Keep Warm Setting

Keep dishes from getting cold with this setting that delivers low heat to the oven.

Broil

When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

Convect Broil

When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.

Bake

Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.

Convect Bake

Convect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.*

*Compared to a traditional thermal-bake cycle on the same model.

Rapid Preheat

The Rapid Preheat option preheats the oven 25% faster and saves time and energy. Using all of the range elements and a fan, the oven heats up more quickly and creates the ideal temperature for single rack baking. Now cutting preheat time for your next batch of chocolate chip cookies or apple crisps is easy.

Voice control with a compatible voice-enabled device (US only)

Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.

Touchscreen

Get instant access to the settings you use most with a full-color Touchscreen display.

Favorites

Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*

*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

Assisted Cooking

Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.

Scan-to-Connect Technology*

*U.S. only.

You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running quickly.*

Remote Start

When set to remote enable, use your smartphone or tablet to remotely turn your cooking appliance on so it’s heated up and ready to cook meals when you are.

Multi-Step Cooking

Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once. The temperature automatically adjusts based on the recipe you enter for great results without having to monitor your meal.

Hidden Bake Element

A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.

Delay Start

Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.

Control Lock Mode

Disable the control panel to avoid unintended use and easily clean controls.

Extra-Large Oven Window

Keep an eye on your meal through the Extra-Large Oven Window.

Sabbath Mode

Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

An American Company for Over 100 Years

Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

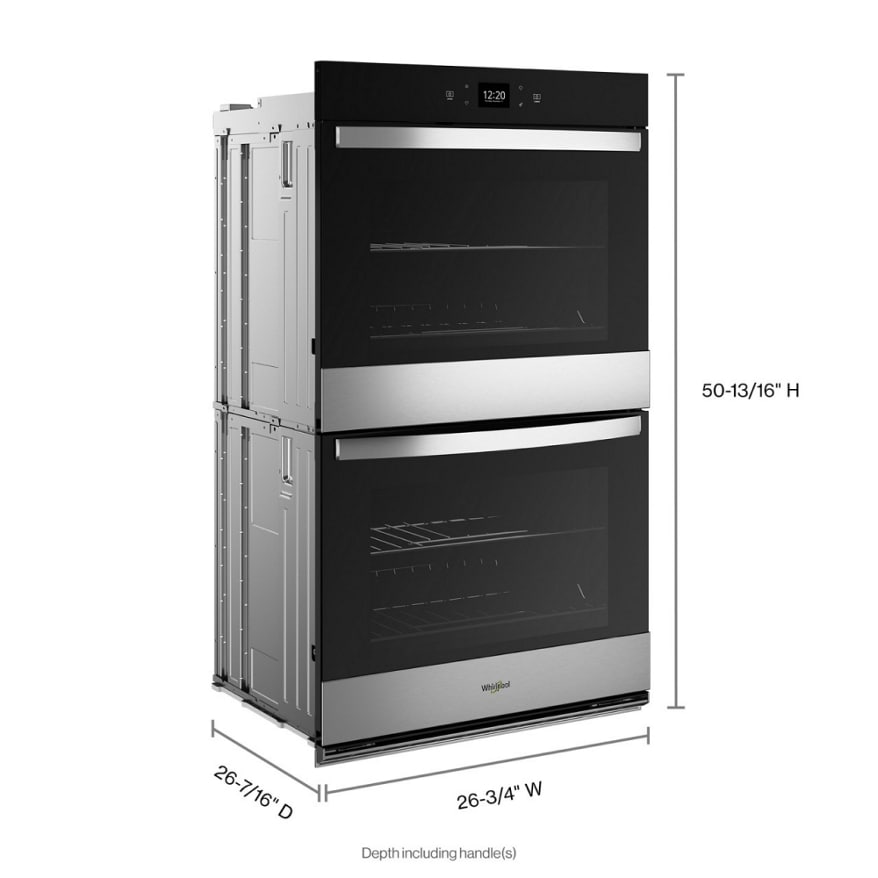

Height:

50-13/16”

inches

50-13/16 in

Width:

26-3/4”

inches

26-3/4 in

Depth:

26-5/16”

inches

26-5/16 in

Download Specs Sheet

Download Dimension Guide

Certifications

ADA Compliant

CUL

Yes

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Star K Certified

Yes

Exterior Details

Door Lock

Yes

Door Type

Metal & Glass

Handle Color

Stainless Steel

Handle Material

Metal

Oven Window Size

Extra Large

Oven Cavity Details

Bake Element Power

2,800 W/2,427W

Broiler Element Power

3600 W/3120 W

Broiler Location

Top of Oven

Convection Element Power

2500 W/2167 W w

Convection Element Type

Single Fan

Convection Functions

Bake, Broil, Convection Conversion

Door Broil Position

Closed

Door Lock

Yes

Door Removable

Yes

Hidden Bake Element

Yes

Installable Under Cooktop

Interior Coating

Porcelain

Interior Color

Grey

Light Type

Halogen

Lower Oven Number of Oven Lights

Number of Bake Elements

Number of Broil Elements

Number of Lower Oven Racks

Number of Lower Rack Guides

Number of Upper Oven Racks

Number of Upper Rack Guides

Oven Cleaning Type

Self-Cleaning

Self-Cleaning Oven Racks

Temperature Conversion

Yes

Upper Oven Number of Oven Lights

Dimensions

Capacity

8.6 cu. ft.

Common Size

27 in

Cutout Depth

24 in

Cutout Height

50-1/4 in

Cutout Width

25-1/2 in

Depth

26-5/16 in

Depth Closed Excluding Handles

24-219/500 in

Depth Closed Including Handles

26-313/1000 in

Depth With Door Open 90 Degree

46-47/250 in

Gross Weight

260 lbs

Height

50-13/16 in

Lower Oven Interior Depth

19 in

Lower Oven Interior Height

18 in

Maximum Height

52-9/16 in

Minimum Height

50-13/16 in

Net Weight

255 lbs

Upper Oven Interior Depth

19 in

Upper Oven Interior Height

18 in

Width

26-3/4 in

Details

Delay Clean

Yes

Flush Installation Approved

Yes

Fuel Type

Electric

Oven Automatic Shut-Off

Yes

Oven Selections

Air Fry, when connected, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapid Preheat, Sabbath Mode, Stop Time, Timer

Oven Type

Double

Power On Indicator Light

Yes

Controls

Control Type

Glass Touch Digital Display

Display Color

Full Color

Electronic Display Type

Full Color LCD

Language Conversion

English/French/Spanish

Light Control

Oven Light Touch Pad

Smart Compatibility

Connectivity

Amazon Alexa, Android, Google Assistant, iOS

Smart Appliance

Yes

Works With

App, Remote Access, Voice Controlled, WiFi

Electrical

Amps

Power Cord Included

Volts

240
