Washer & dryer dimensions: standard & stackable sizes

What are standard washer and dryer sizes?

Standard washer and dryer dimensions typically average 27 inches wide, 39 inches tall and 32 to 34 inches deep. These measurements provide a good baseline for most laundry setups, although some models do vary by size.

Front load units generally fall within these dimensions—about 27 inches wide, 39 inches high and 32 to 34 inches deep—offering a sleek, stackable design that fits well in smaller spaces.

Top load washers are usually the same width but slightly taller, measuring around 42 to 44 inches in height and 27 to 28 inches deep to accommodate the lid opening. Again, some models may vary.

When measuring your laundry area, be sure to leave at least six inches behind the appliances for hoses and ventilation, plus one inch between them for side-by-side installations.

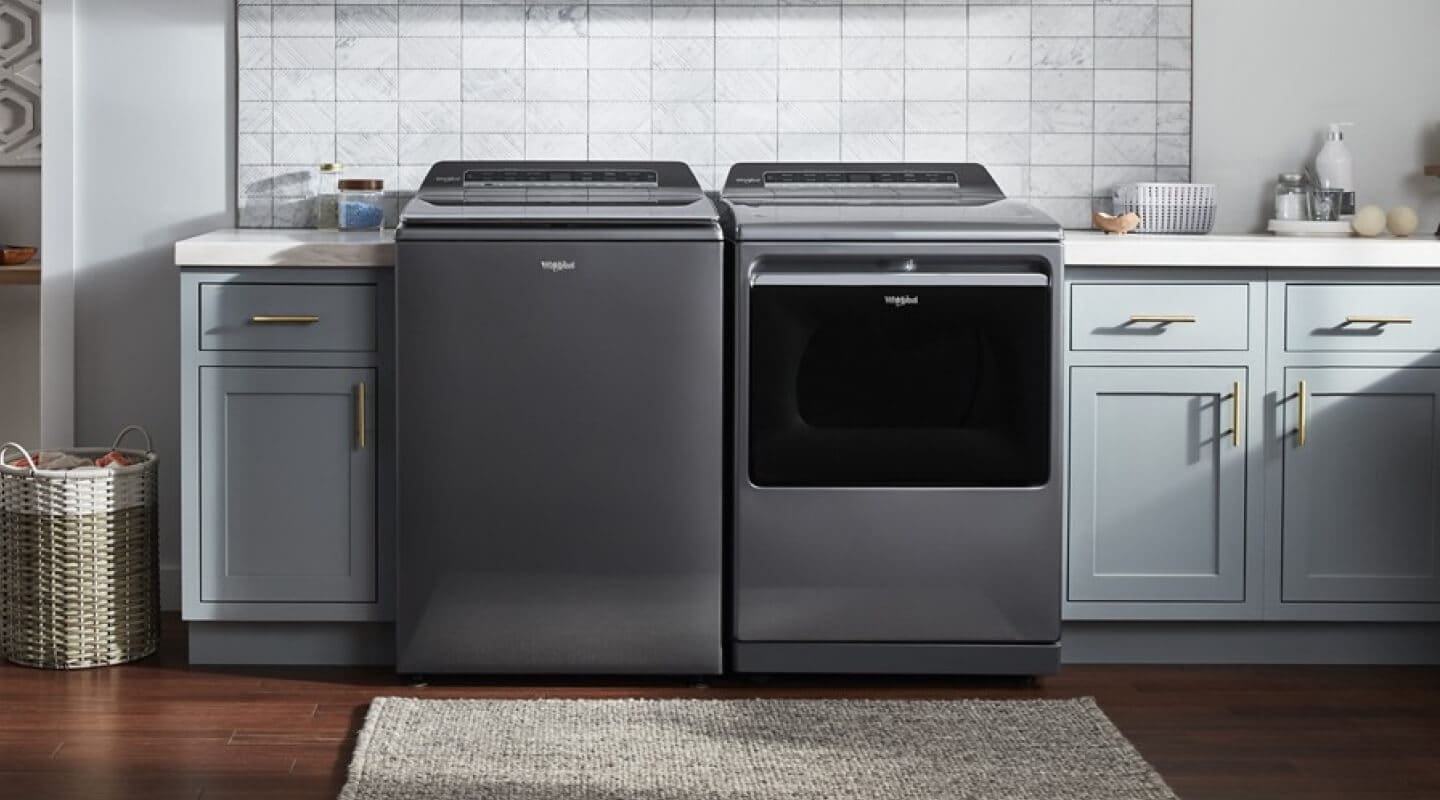

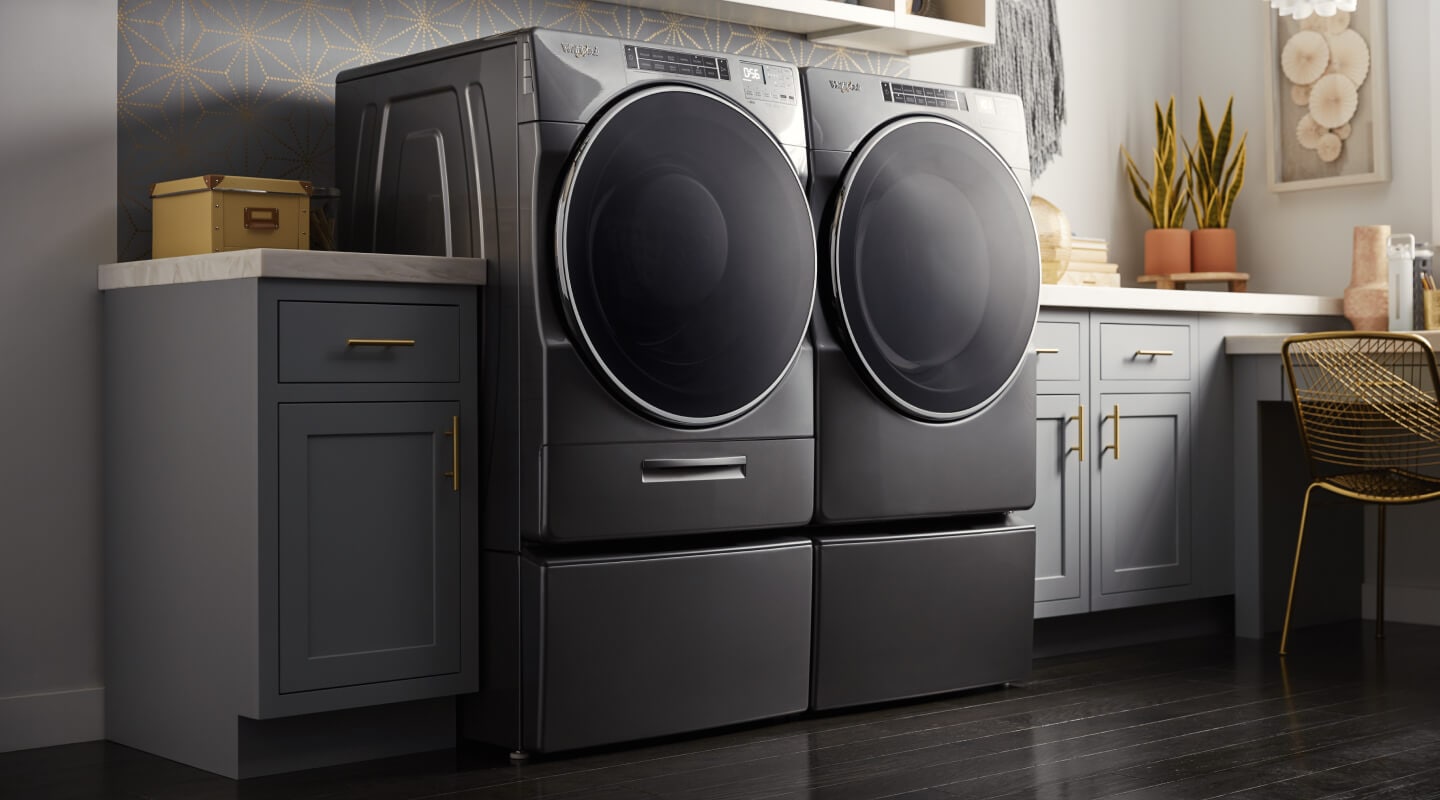

Standard side-by-side washer and dryer dimensions

A standard side-by-side washer and dryer set usually measures about 54 inches wide, 39 inches tall and 32 to 34 inches deep. Make sure your space is at least 56 inches wide to accommodate both units comfortably. Some models do vary, so be sure to check the measurements of the unit you wish to buy and compare it with your space ahead of time. When planning your laundry space, keep the following measurements and clearances in mind to help ensure proper fit and performance:

• Allow 1 inch of space on each side and 6 inches behind the appliances for proper ventilation and hose connections.

• If you have front load units, make sure to allow about 4 feet of space in front for ample room to load and unload your laundry.

• For top load units, be mindful to account for at least 2 feet of clearance on top of the appliance for easy opening and closing of the lid.

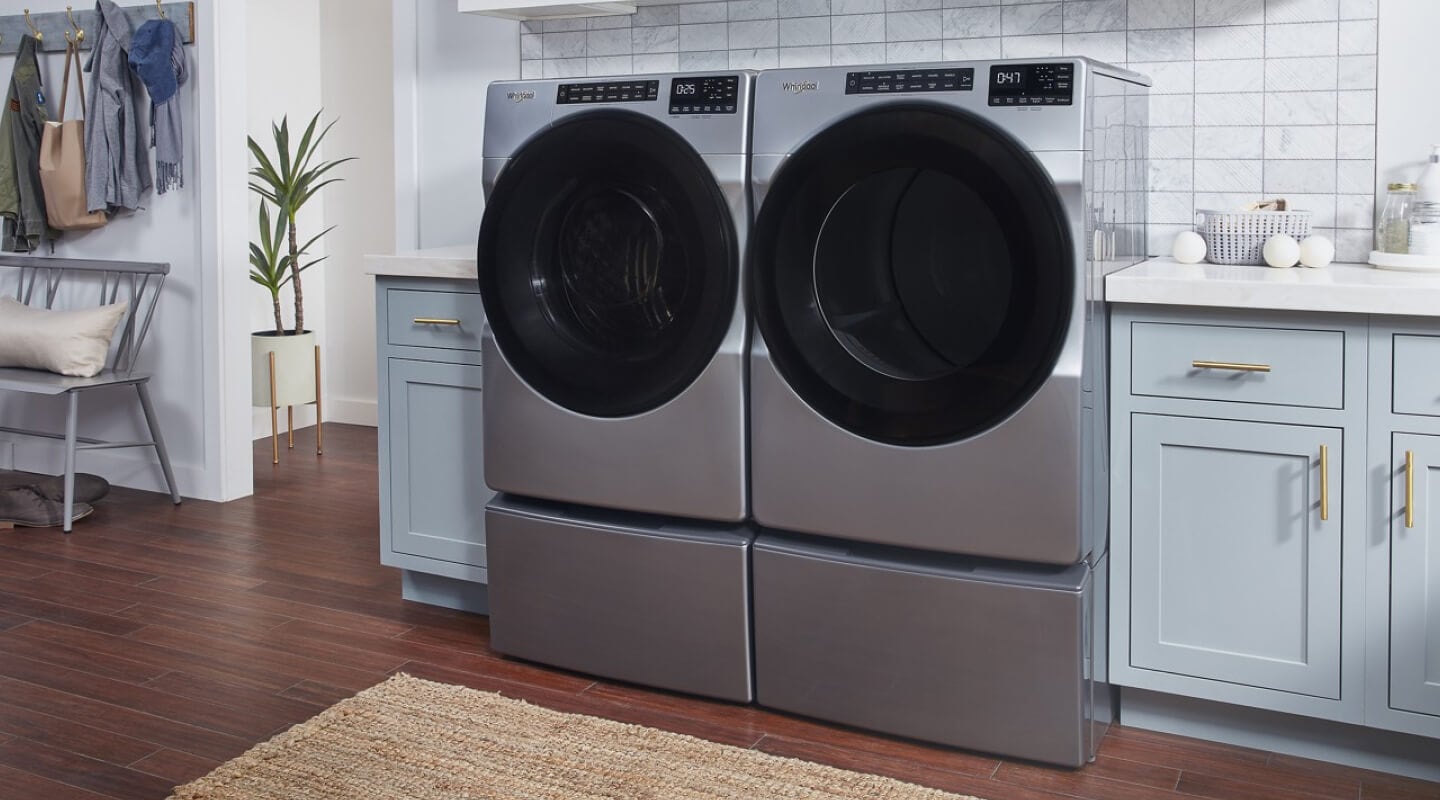

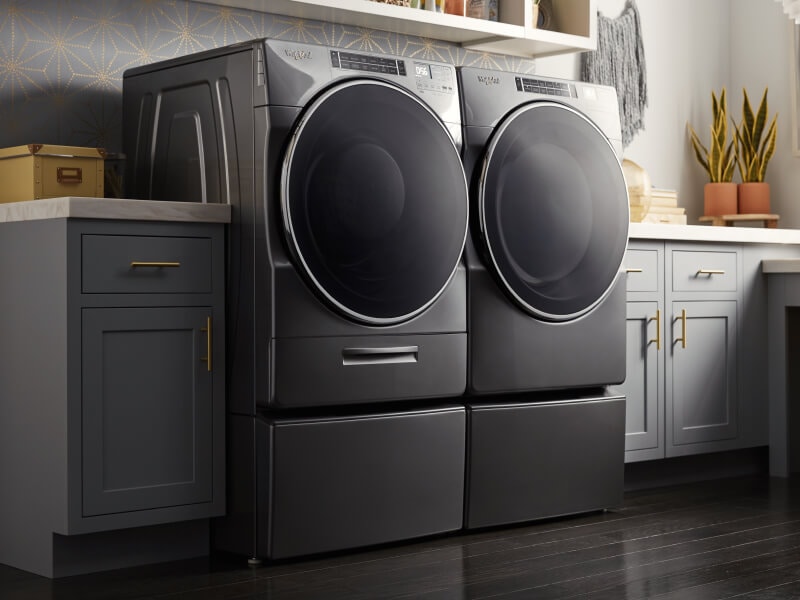

• Adding washer and dryer pedestals to front load washers and dryers from Whirlpool brand may increase height by about 10 to 16 inches, allowing you to load and unload with minimal bending.

• Standard washers typically have around 3 to 5 cubic feet of capacity, while dryers generally have five to seven cubic feet.

• Top load washers may have a slightly larger capacity of a little more than five cubic feet, whereas front load washers typically do not exceed five cubic feet.

Learn more about the nine best washer and dryer sets from Whirlpool brand.

Shop full-size washers and dryers from Whirlpool brand

Whirlpool^® Washing Machines and Dryers are built to help you care for your family’s clothes with convenient features, capacities and configurations. The Pretreat Station Plus available on select models lets you soak, scrub and wash all in one spot with a built-in, dual temperature faucet and pretreat brush, while the Deep Water Wash Option fills your washer to the maximum water level for your load and helps rinse away loose soils. Discover washers that help make it easier to care for your family’s laundry, load after load.

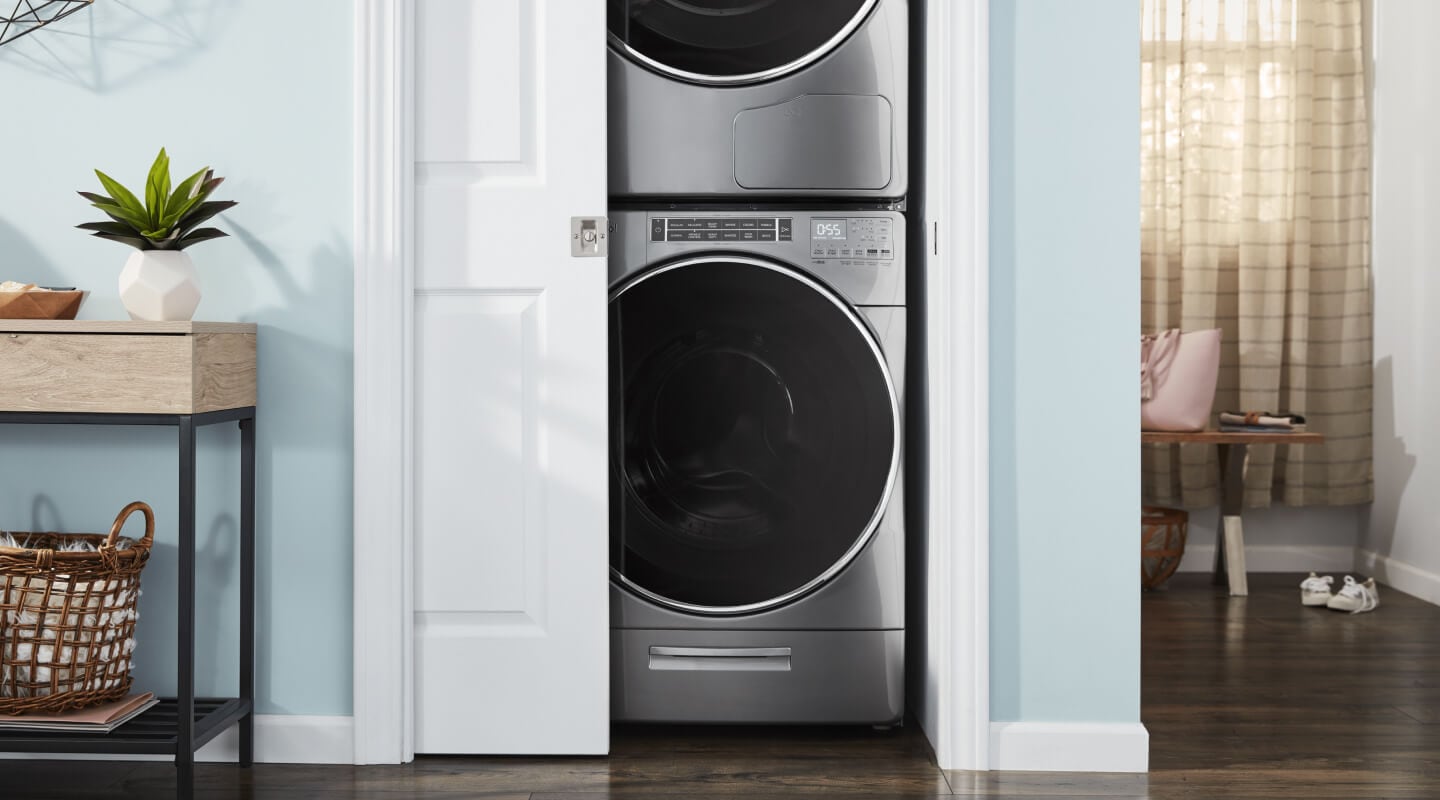

Stacked washer and dryer dimensions

You can install a stacked laundry pair in a few different ways, each with unique installation options. Opt for a stackable front load laundry pair, or get a stacked top load washer and dryer combo, most often called a “stacked laundry center.”

Learn more about the different stackable washer and dryer models and features available.

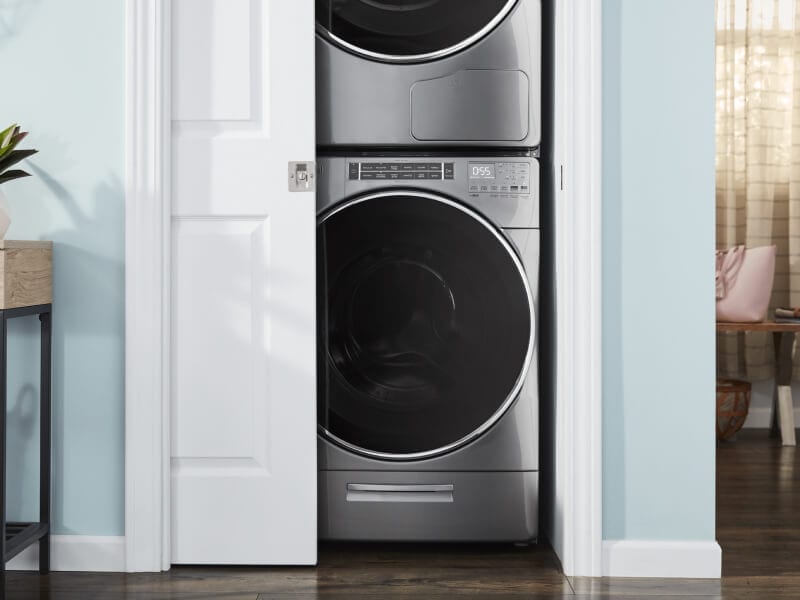

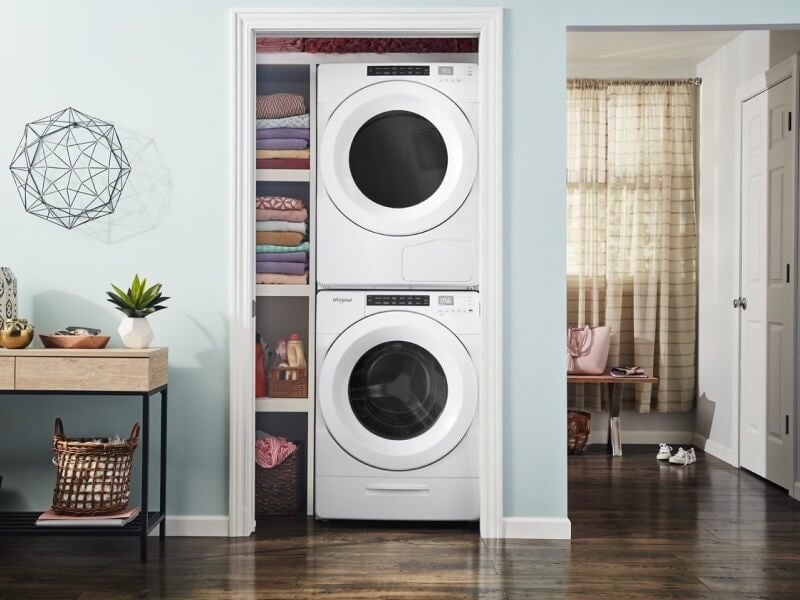

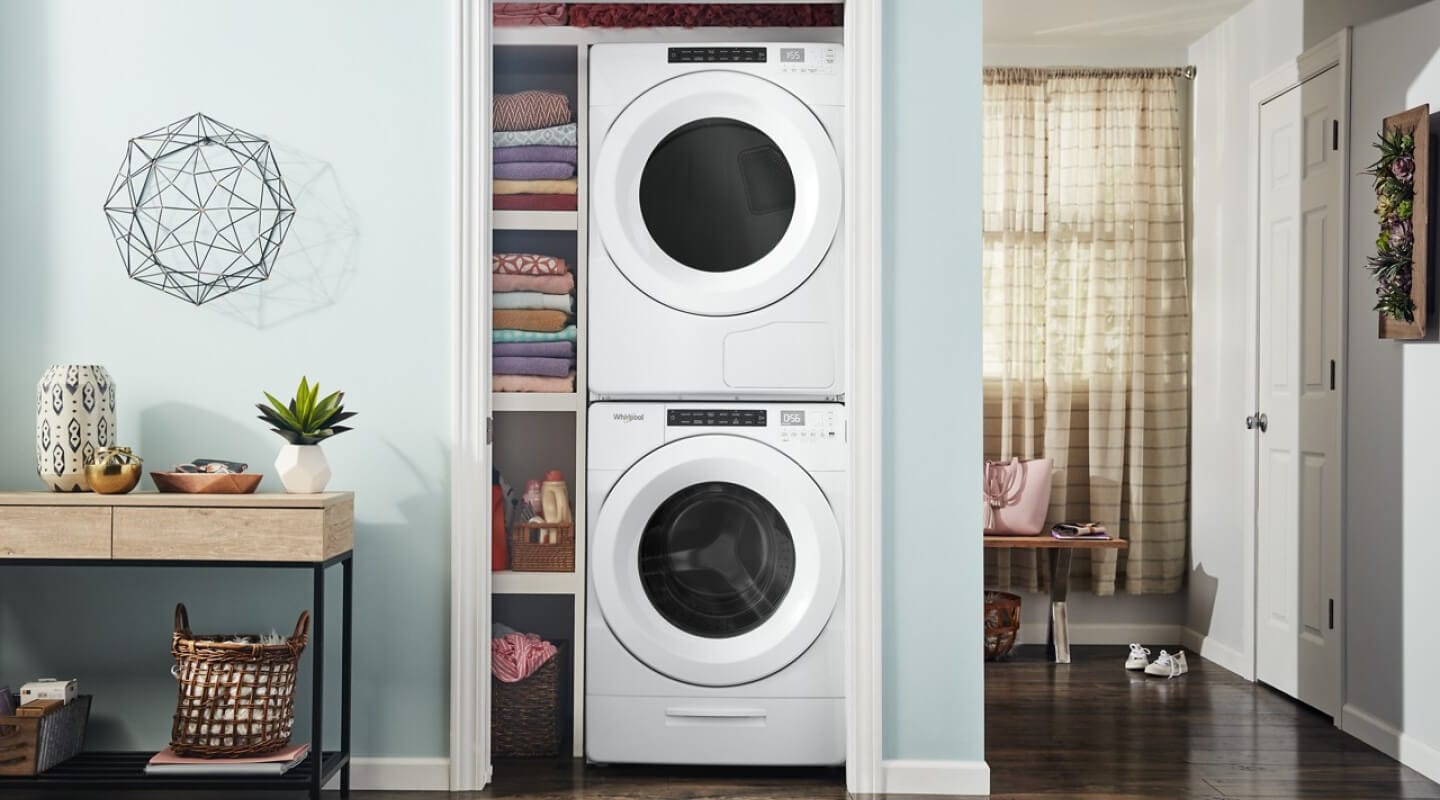

Stackable front load washer and dryer dimensions

Many front load washers and dryers can be stacked, which may be ideal if you have more vertical than horizontal space in your home.

A stackable front load washer and dryer are each about 39 inches tall, or around 78 inches total when stacked, with the unit measuring roughly 24 to 28 inches wide and 32 to 34 inches deep. To fit the appliances in your space, plan for a laundry area that’s approximately 29 inches wide, 80 inches tall and 32 to 34 inches deep to accommodate the set. Some models' measurements may vary, so be sure to check the measurements of your space, as well as your chosen stackable set, before you purchase.

Be sure to allow at least six inches of clearance behind the appliances for ventilation and one inch of space on each side if stacking in a closet.

Shop stackable washers and dryers and washer/dryer combos from Whirlpool brand

Stackable washer and dryer sets from Whirlpool brand are a simple way to help maximize on space without compromising the integrity of your household laundry routine. Choose from gas or electric sets, and a variety of features to accommodate your family’s priorities, from AI Intelligent Dry technology that uses three sensors to detect moisture and temperature to the FreshFlow^™ Vent System, the first fan-powered system with antimicrobial protection designed to help keep your clothes and washer fresh.

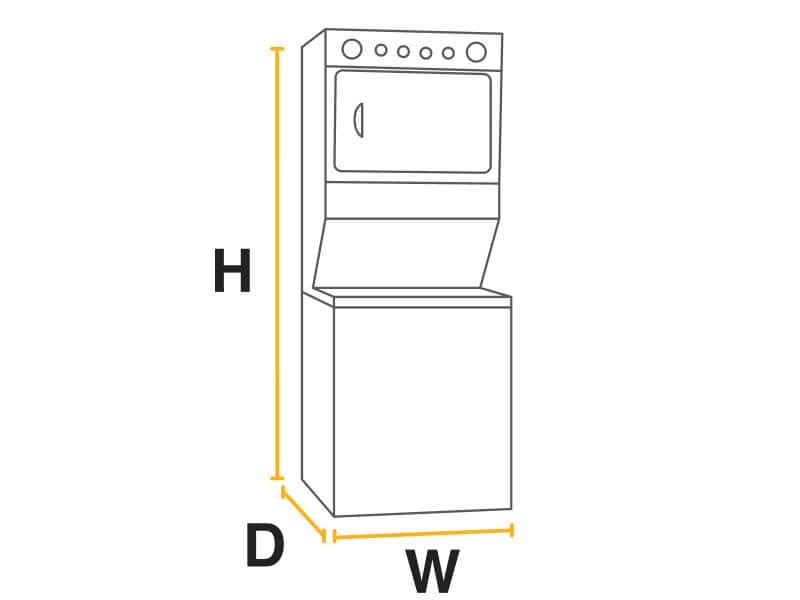

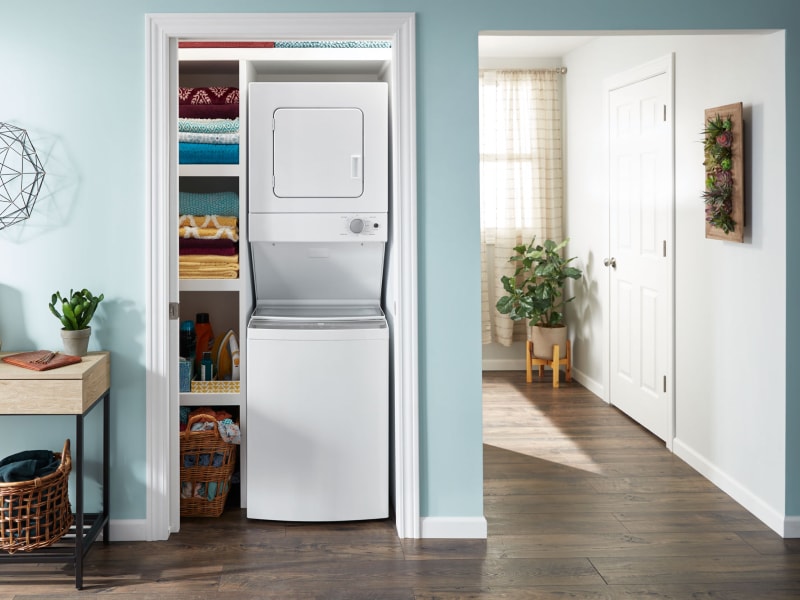

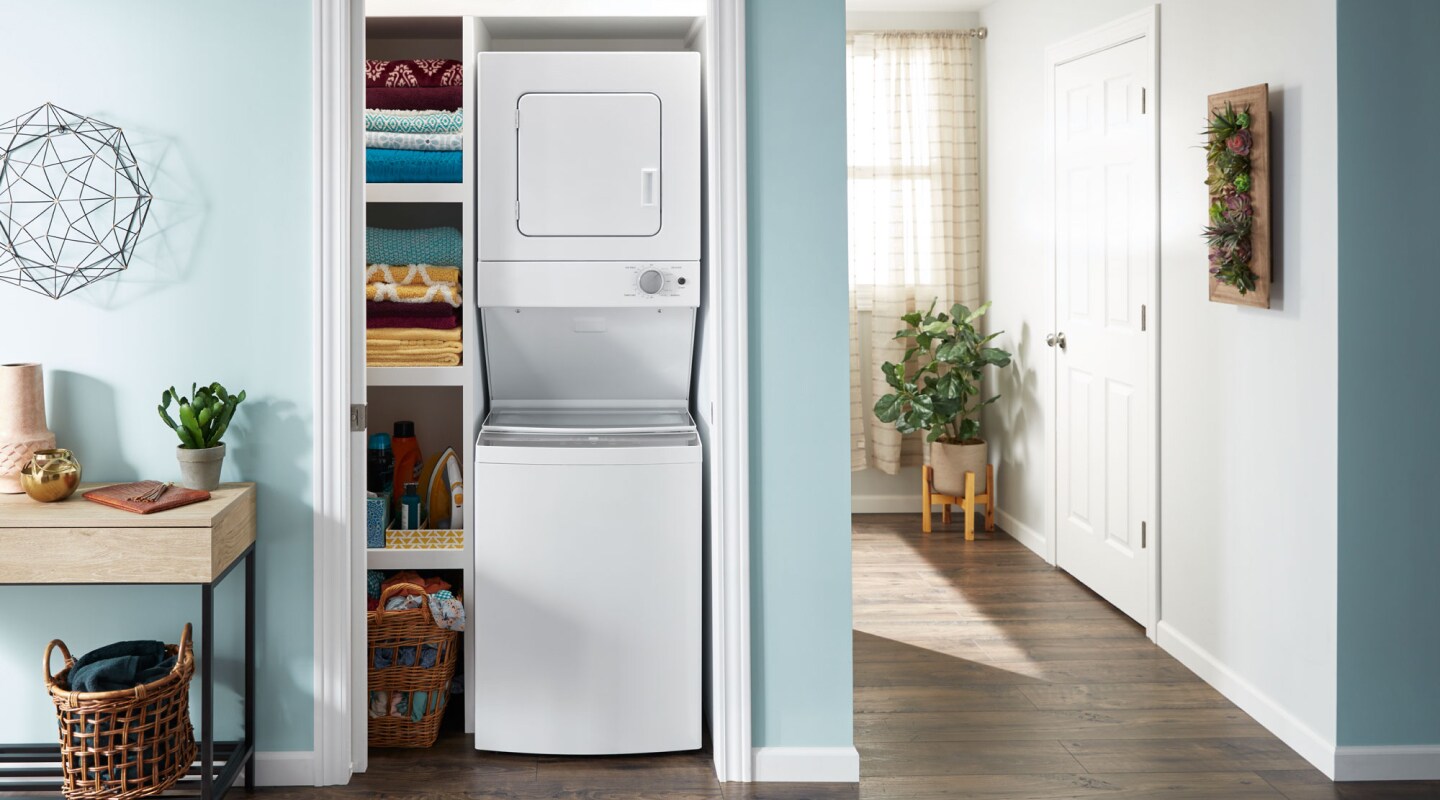

Stacked laundry center dimensions

Stacked laundry centers like these from Whirlpool brand—also called laundry towers—combine the washer and dryer into one space-saving appliance, most often with the washer on the bottom and dryer on top.

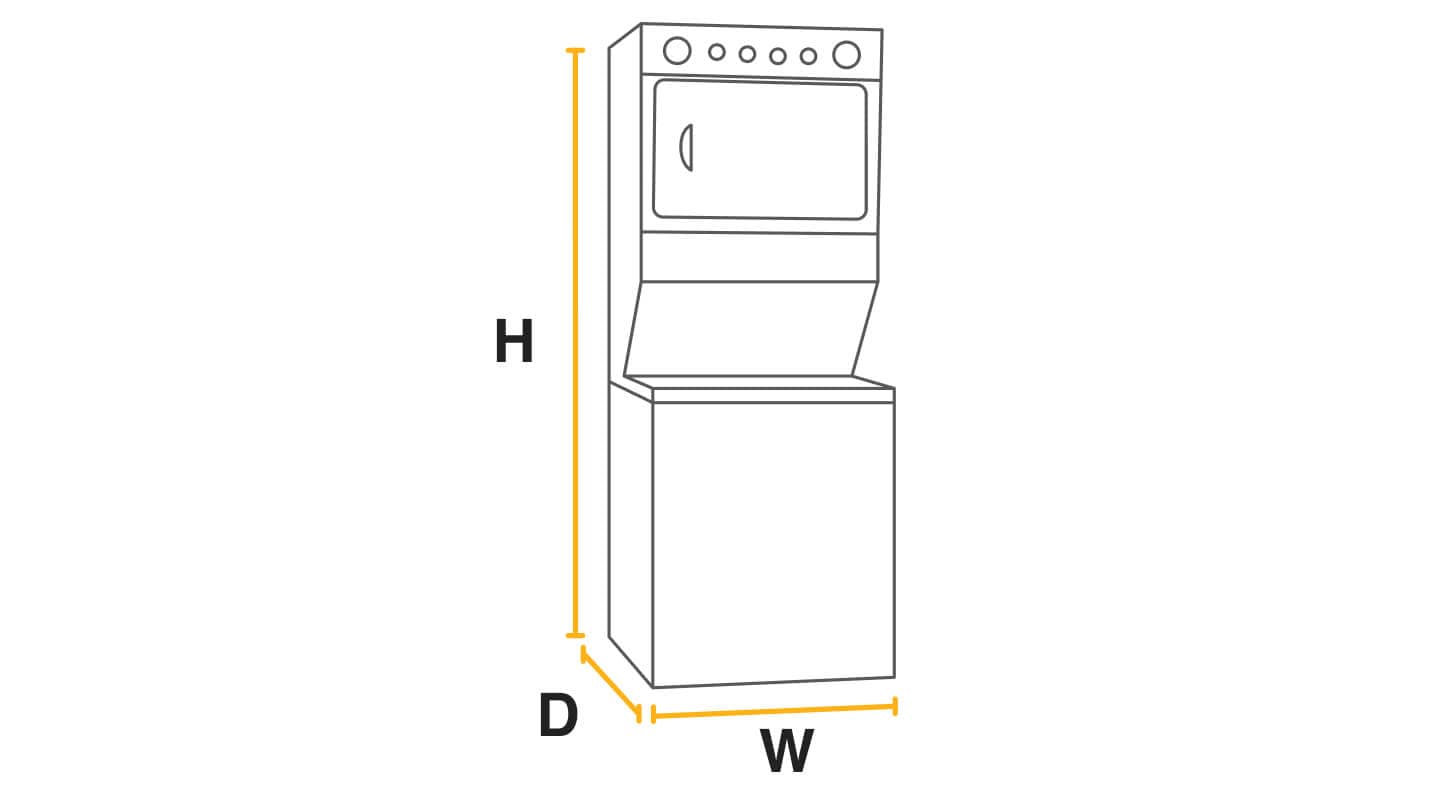

Typical stacked laundry center dimensions are roughly 75 inches tall, 23 to 28 inches wide and 26 to 33 inches deep, although models do vary. When planning your setup, make sure to:

• Allow at least 6 inches of clearance behind the unit for hoses, vents and electrical connections.

• Leave 1 inch of space on each side to help ensure proper airflow and stability.

• Check that door swings have enough room to open fully without hitting walls or nearby cabinets, especially if the unit is installed in a closet or tight area.

Shop stacked laundry centers from Whirlpool brand

Whirlpool^® Stacked Laundry Centers are designed to make the most of your space while delivering thorough cleaning performance. Select Whirlpool^® models feature a Smooth Wave Stainless Steel Wash Basket that gently guides clothes with a sleek pattern and an EasyView^™ Glass Lid with Slow-Close Technology that offers a clean, streamlined look while letting you easily check on your load as it washes. Explore stacked laundry solutions that fit your home and your routine.

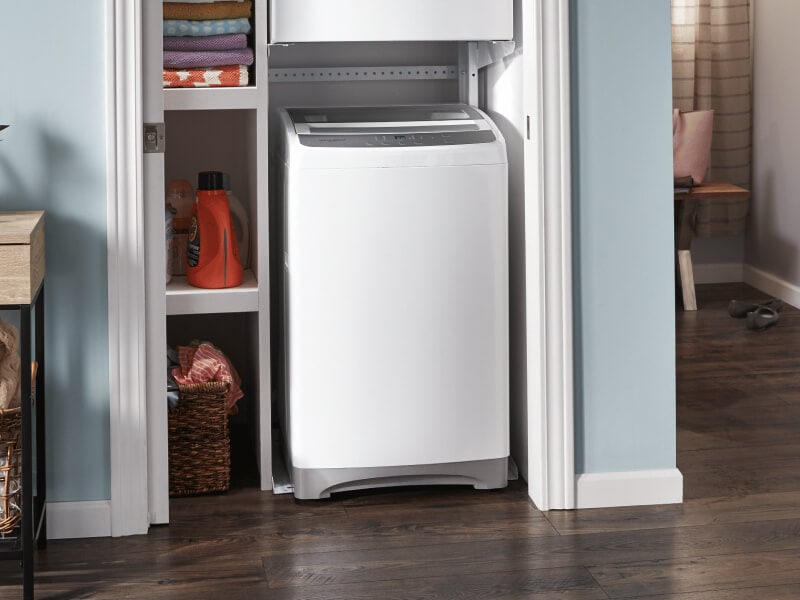

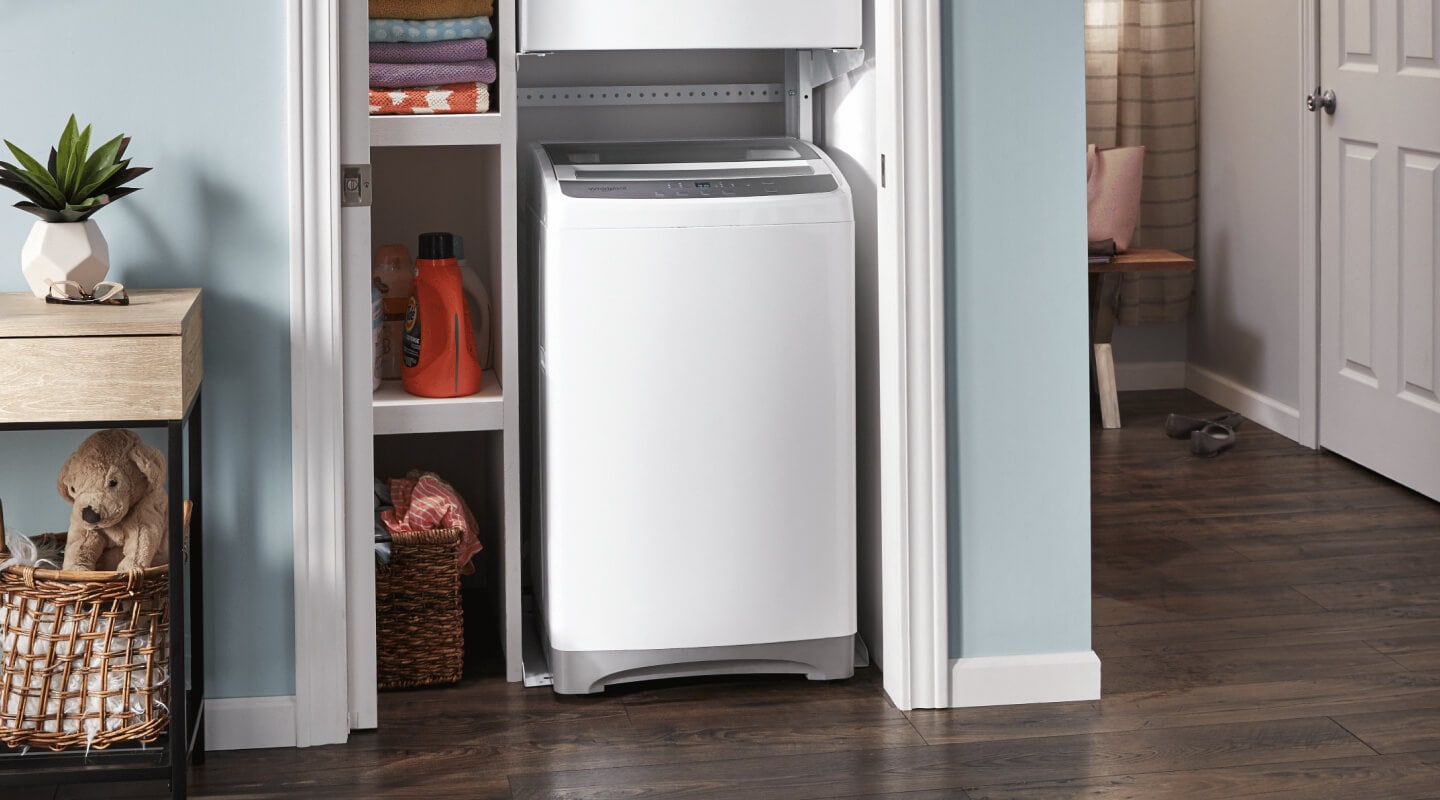

Compact washer and dryer dimensions

Compact washers and dryers are designed to fit inside apartments, small homes and closets. This provides you the flexibility to either stack the appliances, align them side by side or even possibly install front-loading units underneath your counters for more space-saving possibilities.

Learn more laundry room organization tips to make the most of your space.

• Compact models are significantly smaller than side-by-side washers and dryers, which typically measure around 54 inches wide and 39 inches tall.

• Standard compact washers and dryers range from 24 inches wide, 33 to 36 inches tall and 24 to 26 inches deep. But some models do vary.

• For stacking, make sure to account for an area that is approximately 24 inches wide, 66 to 72 inches tall and 24 to 26 inches deep.

• For aligning compact washers and dryers side by side, you will need a space that is roughly 48 inches wide, 34 inches tall and 25 inches deep. Be mindful to leave one inch of space between the appliances.

• Whether you are stacking units or aligning them side by side, remember to allow for at least six inches of clearance in the back for hoses and ventilation.

Shop Whirlpool^® Compact Washers and Dryers

Getting laundry done without a dedicated laundry room can feel like a challenge, but appliances built for compact spaces can make it much easier. Whether you need a washer and dryer combo for a small basement, a stacked laundry center to fit in an apartment closet or an all-in-one unit for your RV, Whirlpool brand offers a range of space-saving options to help simplify your routine.

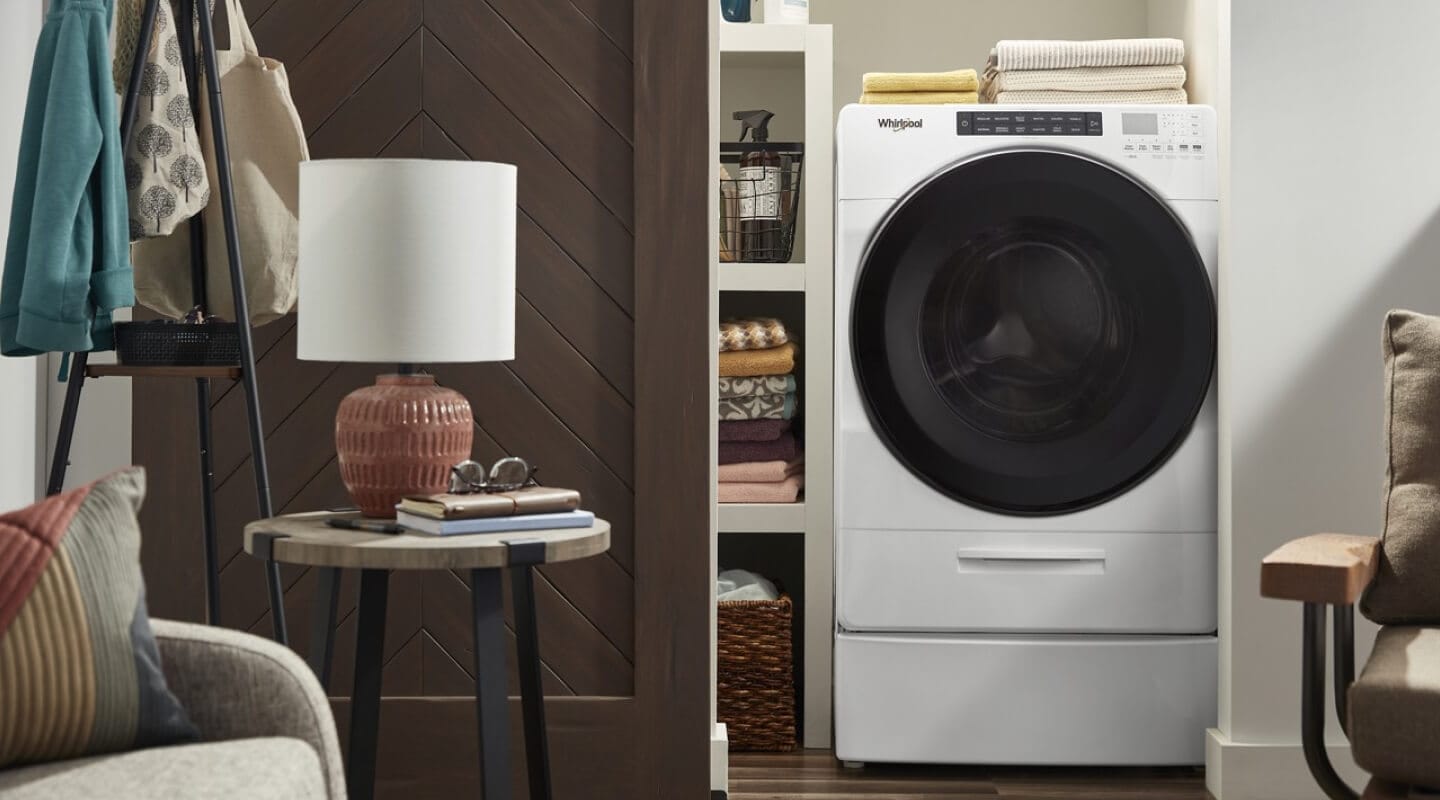

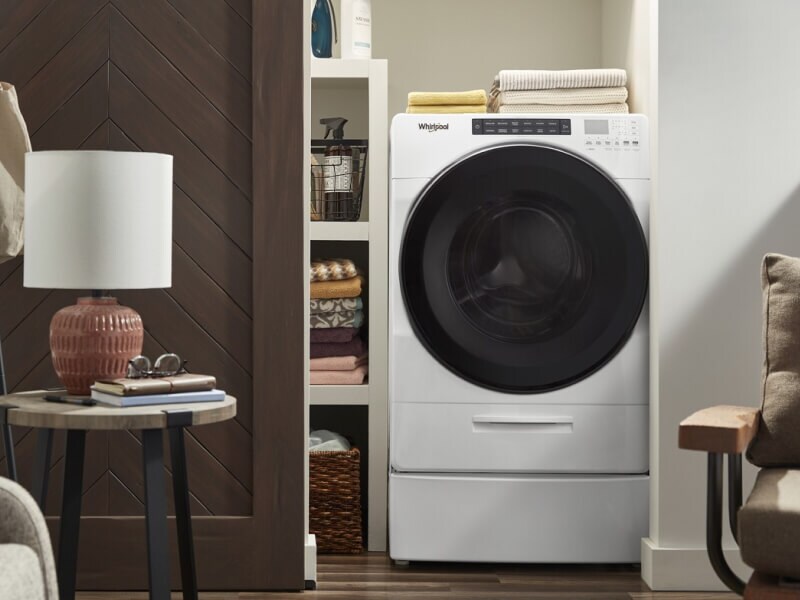

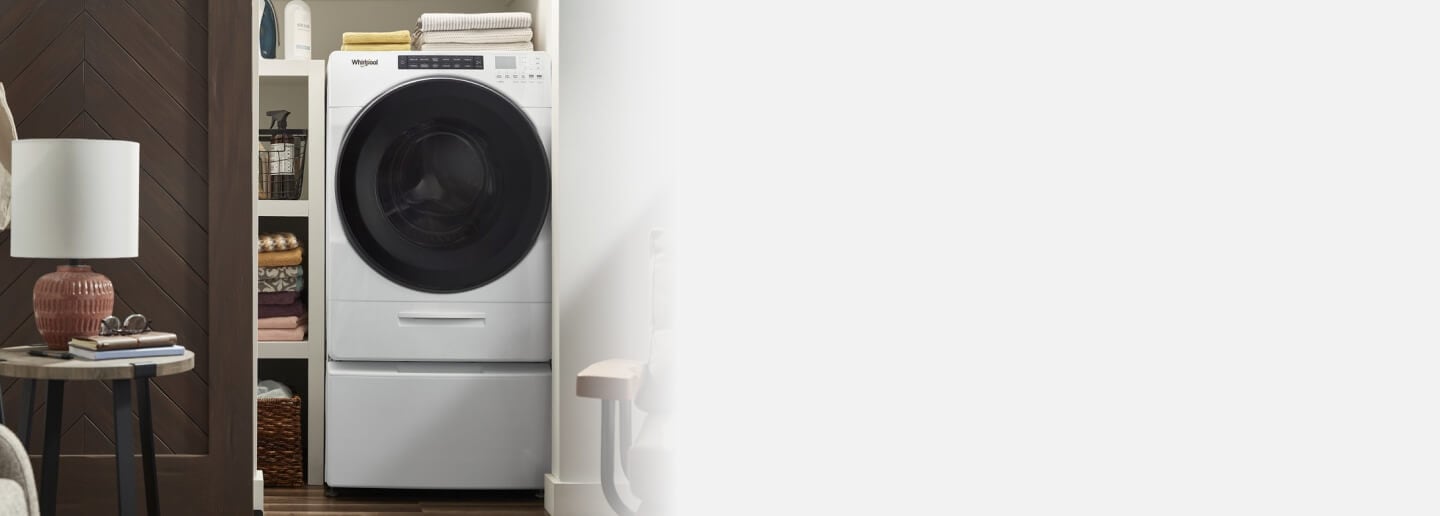

All-in-one washer and dryer dimensions

An all-in-one washer and dryer is a combination appliance that can both wash and dry your laundry in a single unit. This two-in-one design helps you save space without sacrificing performance, making it ideal for apartments, small homes or laundry closets where traditional side-by-side or stacked configurations won’t fit. These units eliminate the need to transfer clothes between machines and are available in both vented and ventless models for flexible installation.

All-in-one washer and dryer models typically measure roughly 23 to 27 inches wide, 33 to 39 inches tall and 22 to 30 inches deep, with a load capacity between 2 to 4 cubic feet. Although some models do vary in size.

All-in-one washer dryer combos wash and dry clothing in one machine, allowing you to choose a wash-only, dry-only or combined wash-and-dry cycle. The wash function operates like a conventional front load washer, while the dryer function uses either vented or ventless technology depending on the model.

Because ventless drying can take longer, it’s best to load items loosely to help them dry completely. Always check your user manual for guidance specific to your appliance.

Large capacity washer and dryer dimensions

Large capacity washers and dryers are designed to handle bigger loads, helping you wash more laundry in fewer cycles. These models are ideal for families, households that wash bulky items or anyone who wants to minimize the number of loads each week.

A large capacity washer is generally considered 4.5 cubic feet or more, offering enough space to clean a king-size comforter. By comparison, a typical washer offers 3.3 to 4.4 cubic feet of capacity.

Large capacity models can sometimes be taller or wider than standard washers and dryers, so it’s important to measure your space carefully before purchasing. A large capacity dryer generally has a capacity over 7 cubic feet, enough to handle around 15 to 20 towels in one drying cycle.

Shop Whirlpool^® Large Capacity Washers and Dryers

When your family—and your laundry loads—are extra large, Whirlpool^® Large Capacity Washers and Dryers help you get more done in less time. Large capacity front load washers offer a streamlined look, easy-to-reach controls and convenient loading through the door. Select Whirlpool^® models feature a Load & Go^™ XL Dispenser, which lets you add detergent once and skip refills for up to 40 loads. Select Whirlpool^® Dryers feature a 7.4 cubic feet capacity that provides plenty of room to dry bulky items like comforters and sleeping bags. Find a large capacity washer and dryer that help make it easy to care for your family’s laundry.

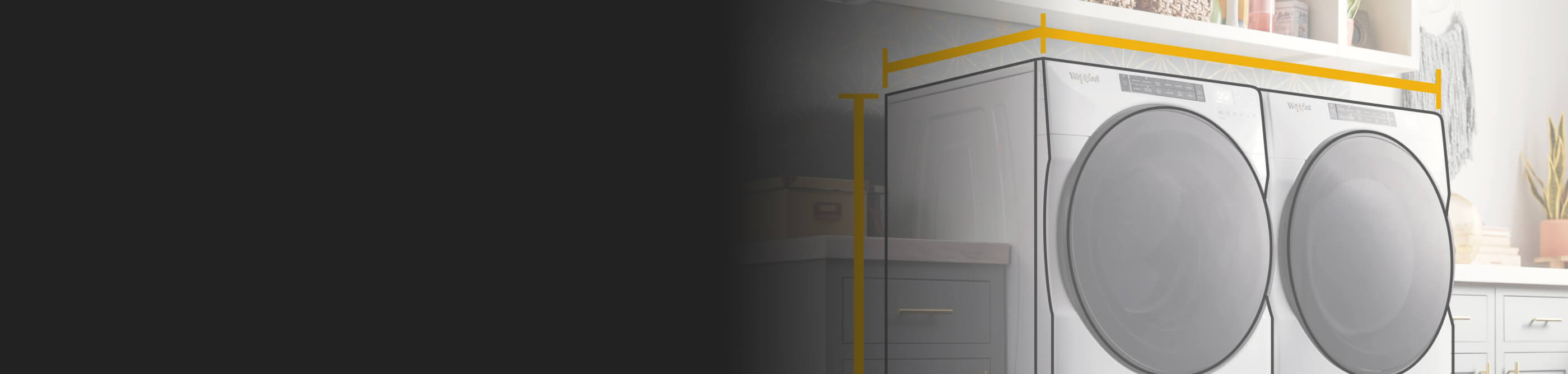

Tips for how to measure a new washer and dryer

Along with measuring the dimensions of your washer and dryer, make sure to determine the height, width and depth of the laundry area to ensure a proper fit.

Be mindful to account for six inches of space between the back wall and one inch of space between the appliances for side-by-side placement.

What you’ll need:

• Measuring tape

• Pencil and paper

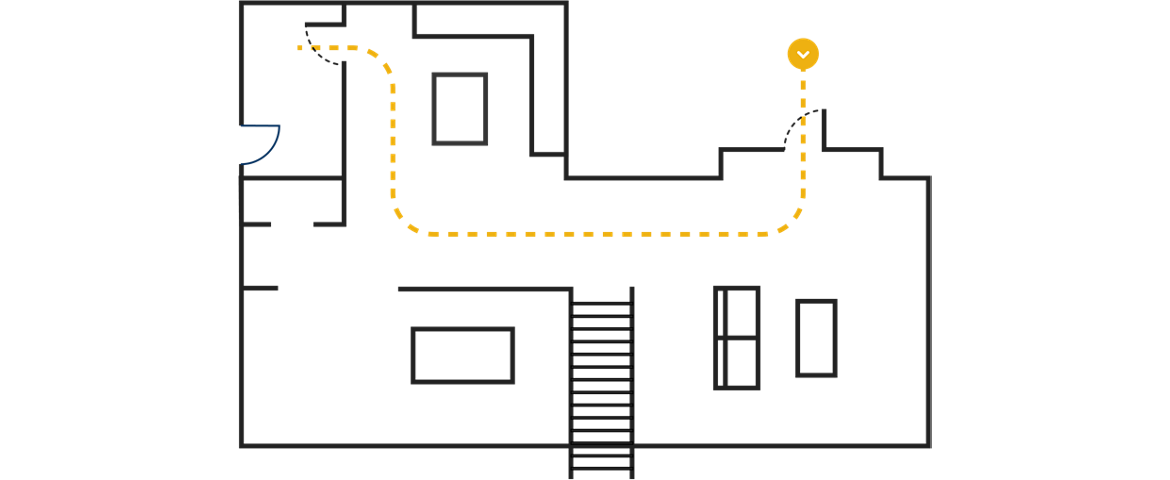

Map out and measure a path for washer and dryer delivery

After you have taken your measurements, determine the best path of entry to your desired installation location. Beginning at the entrance to your home, measure the width of doorways and hallways to make sure the washer and dryer can be maneuvered into place.

New models with the same dimensions: measure your existing washer and dryer sizes

You’re familiar with how your current laundry pair fits your space, so it may be simplest to measure your existing washer and dryer to discover the ideal dimensions for your new set. Follow the three steps below to measure your washer and dryer.

1. Width: Using your measuring tape, measure the width of your washer and dryer from left to right.

2. Height: Next, measure the height of your washer and dryer from top to bottom.

3. Depth: Lastly, measure the depth of your washer and dryer from front to back.

New models for a new or updated laundry space: measure your layout

The laundry room in a new home or a renovated space is uncharted territory, so it’s important to carefully measure the space before committing to a new laundry pair. Follow the steps below to measure your new space.

1. Width: Use a measuring tape to measure the width of your laundry space from wall to wall. For flexibility, add one inch to your width measurement for buffer space between each side wall. To help minimize noise when your appliances are set in place, account for a one-inch gap between the appliances.

2. Height: Next, measure the height of your space from floor to ceiling. You’ll need at least enough space to accommodate the height of your laundry pair, from appliance feet to the top of the control panel, plus an extra two feet to ensure easy loading and unloading of top load units.

3. Depth: Measure the depth from one wall or doorway to the opposite wall where your appliances will go. Be mindful to add about six inches to your depth measurements to account for hoses and venting in the back of the appliance. For front load, add approximately four feet to allow for extra space to load and unload laundry. If you place the appliances inside a closet, make sure the closet doors can fully open and close without obstruction.

Discover Whirlpool^® Washers and Dryers

When shopping for a new washer and dryer, be mindful of your maximum space requirements while reviewing appliance dimensions on various models.

Still not sure what you're looking for? Whirlpool brand can help you narrow your search so you can find a set with the right capacity, dimensions and features for your family.
